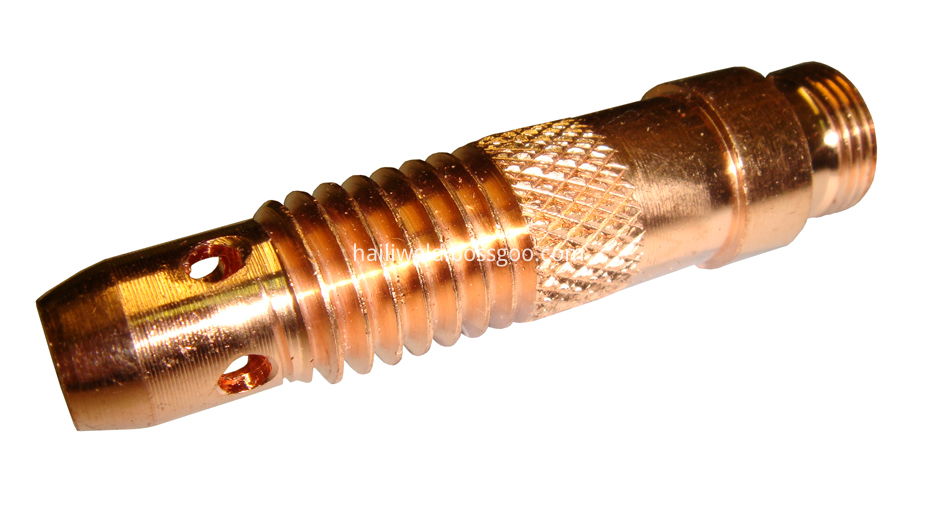

Tig Welding Collet Body 10N31 1.6mm

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1000 Piece/Pieces
Delivery Time: 20 Days

Basic Info

Model No.: 10N31

Brand: HAILI

Original: China

Packing: Colorful Plastic Bag

Delivery Time: 15 Days

Torch Type: WP/17/18/26

Material: Copper

Size: 1.6mm,2.4mm,3.2mm

Specification: 10N31,32,28 Etc

MOQ: 1000 PCS

Item Name: Tig Welding Collet Body

Additional Info

Packaging: each 10 pcs packed in one plastic bag

Productivity: 15,000,000

Brand: HAILI

Transportation: Ocean,Land,Air,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090

Port: NINGBO,SHANGHAI,QINGDAO

Product Description

1, Product Datas:

The collect body is the connector between the welding collects and the Ceramic Nozzle .It is important in the torch .The collect body has the difference of the length ,the long and the stubby .Different tig torches need different length of the collect bodies .We have four types ,the 10N ,the 17CB ,the 13N,the 11W .The custom can choice based on their need .

2, Products Details:

WP171826 1.6mm Collet Body (10N31)

8 Collet 3204139 10N21, 0.5mm

Collet 3204140 10N22, 1.0mm

Collet 3204160 10N23, 1.6mm

Collet 3204170 10N23M, 2.0mm

Collet 3204190 10N24, 2.4mm

Collet 3204220 10N25, 3.2mm
9 Stubby Collet 3204231 10N21S, 0.5mm

Stubby Collet 3204232 10N22S, 1.0mm

Stubby Collet 3204233 10N23S, 1.6mm

Stubby Collet 3204235 10N23MS, 2.0mm

Stubby Collet 3204234 10N24S, 2.4mm

Stubby Collet  3204236 10N25S, 3.2mm
10 Collet Body 3204301 10N29, 0.5mm

Collet Body 3204260 10N30, 1.0mm

Collet Body 3204270 10N31, 1.6mm

Collet Body 3204290 10N32, 2.4mm

Collet Body 3204300 10N28, 3.2mm
11 Stubby Collet Body 3204205 17CB20, All Size
12 Medium Gas Lens 3204091 45V29, 0.5mm

Medium Gas Lens 3204050 45V24, 1.0mm

Medium Gas Lens 3204060 45V25, 1.6mm

Medium Gas Lens 3204070 45V26, 2.4mm

Medium Gas Lens 3204080 45V27, 3.2mm
13 Large Long Gas Lens 3204100 45V116, 1.6mm

Large Long Gas Lens 3204110 45V64, 2.4mm

Large Long Gas Lens 3204120 995795, 3.2mm

Large Long Gas Lens 3204130 45V63, 4.0





















3,Product and Packaging details:

10N24 Collect 2.4mm

10N32  Collect Body 2.4MM

45V26 Gas Lens






45V-Gas len body

Medium Gas Lens

packing for tig and plasma


4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :

Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode

5, Company introdcution:

Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.


The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.

With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.

We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.

6, FAQ

Q1:Can I get a free samples to check the quality of wp17/18/26 series tig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.


Q2:Will I afford the carrier charge of wp17/18/26 series tig welding torch?
A:Yes,you will afford the express charge or your account is OK.


Q3:Can I add my trademark on my products of wp17/18/26 series tig welding torch?
A:Yes,we need your certificate of authorization.


Q4:Welding torch payment terms of wp17/18/26 series tig welding torch:
A: T/T,L/C,Western union all support


Q5:tig Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc 17/18/26 series tig welding torch
