HAILI 200A air cooled panasonic mig welding torch

Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 100 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: 200A

Certification: CE

Maximum Welding Thickness: Other

Application: Hand

Combustible Gas: Other

Flame Number: Multiple Flame

Size: Portable

Type: Other

Brand: HAILI

Welding Type: CO2 Welding Torch

Duty Cycle: 60%

Wire Size: 0.8-1.2mm

Cable Length: 3m,4m,5m

Cooling Type: Air Cooled

Packing: Colorful Box

Delivery Time: 15 Days

MOQ: 100Sets

Item Name: Panasonic 200 Mig Welding Gun

Additional Info

Packaging: each set packed in colorful box, each 5 sets packed in one master carton box

Productivity: 150,000

Brand: HAILI

Transportation: Ocean,Land,Air,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090

Port: NINGBO,SHANGHAI,QINGDAO

Product Description

1, Product Datas:

HAILI 200A air cooled panasonic mig welding torch

1. CO2 air protective welding torch.
2. Rating: 200A CO2 1600A Mixed Gases
3. Duty Cycle: 60%
4. Wire Size: 0.8-1.2mm
5. handle colour could be available
6. 3M, 4M ,5M is available.

7.All the torch accessories available

8, CE certificate

9, OEM, ODM service available

10, Special packaging available

2, Products Details:

pana 200a torch

No. Dscription OEM p/n

200A Complete Torch 3M

200A Complete Torch 4M

200A Complete Torch 5M
1 Separable Cylindrical Nozzle Φ15mm
2 Separable Conical Nozzle Φ13mm
3 Used With Separable Nozzle, Black Insulator
4 Used With Separable Nozzle, Yellow Insulator
5 Self-insulater Nozzle Φ13mm  TGN01208
6 M6x45x0.8 Contact Tip,E-Cu

M6x45x0.9 Contact Tip,E-Cu

M6x45x1.0 Contact Tip,E-Cu

M6x45x1.2 Contact Tip,E-Cu

M6x45x0.8 Contact Tip,CuCrZr  TET00841

M6x45x0.9 Contact Tip,CuCrZr  TET00958

M6x45x1.0 Contact Tip,CuCrZr  TET01054

M6x45x1.2 Contact Tip,CuCrZr TET01266
7 Copper Contact Tip Holder M10

Copper Contact Tip Holder M10x1
8 Brass Contact Tip Holder M10

Brass Contact Tip Holder M10x1
9 Swan Neck Spearable M10

Swan Neck Spearable M10x1
10 Swan Neck TCU20111
11 Switch
12a Handle BWM-IV (RED-BLACK)
12b Handle BWM-IV (BLUE-GRAY)
13 Front Cable Support Spring
14 Cable Assembly, 3M

Cable Assembly, 5M
15 Black Cable Support Spring
16 Control Lead Plug
17 Nut Cup
18 Cable Support Machine Side
19 Green Liner,For wire Φ0.8-1.0,3.5M

Green Liner,For wire Φ0.8-1.0,5.5M
































3,Product and Packaging details:

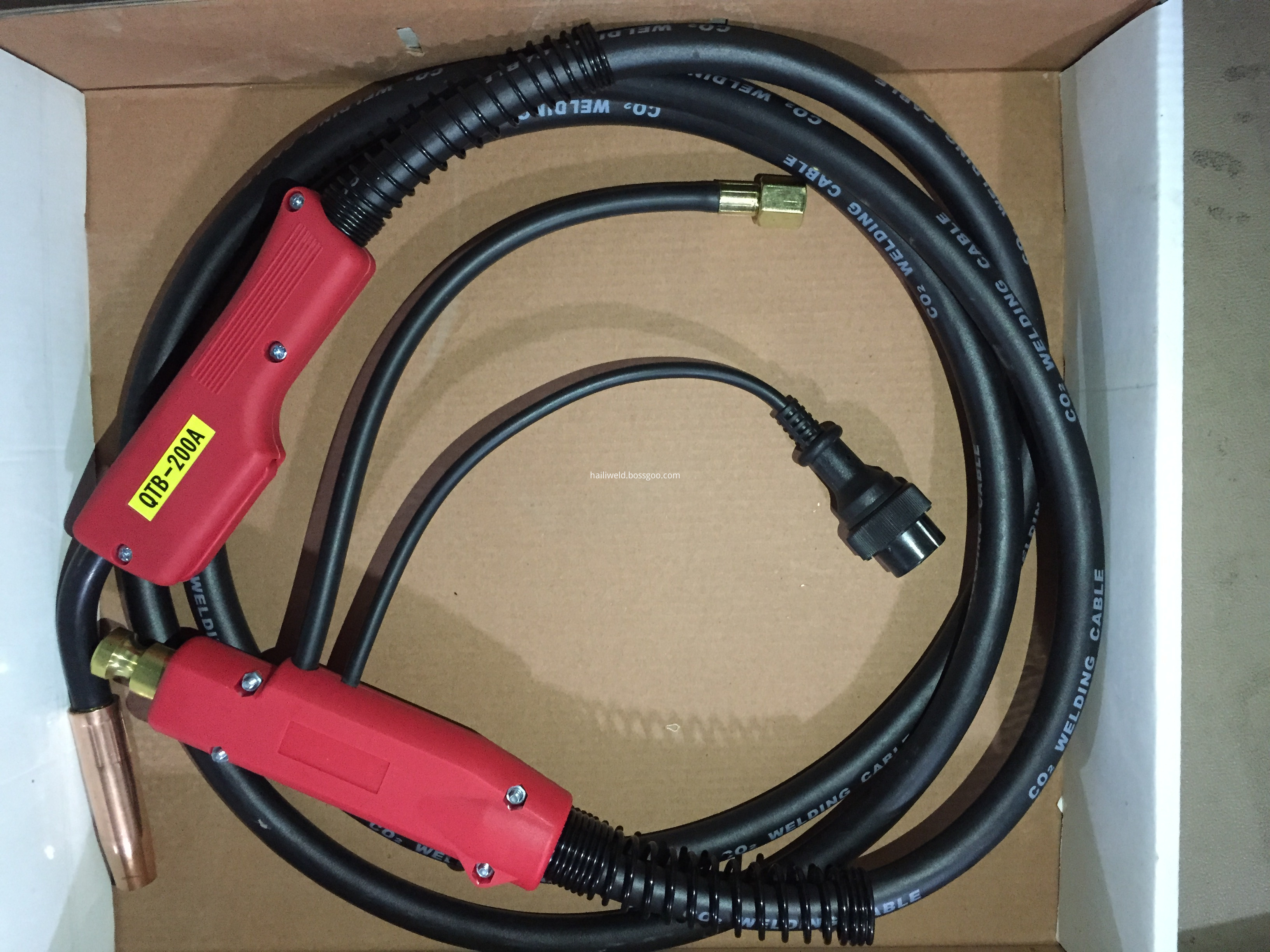

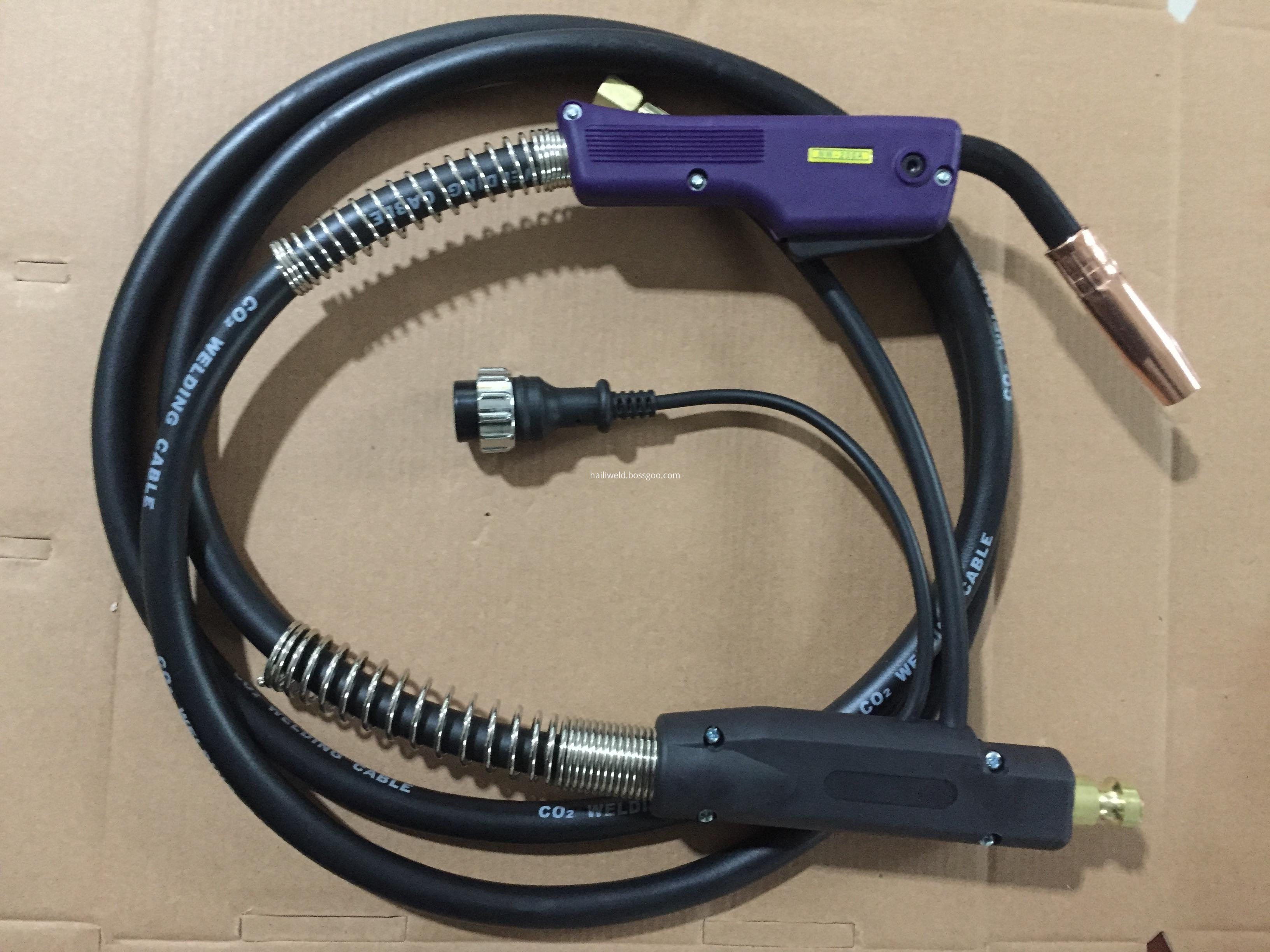

panasonic 200 mig welding gun

panasonic 200a mig mag gun

welding torch panasonic 200a

4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :

Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode

5, Company introdcution:

Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.


The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.

With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.

We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.

6, FAQ

Q1:Can I get a free samples to check the quality of panasonic mig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.


Q2:Will I afford the carrier charge of  panasonic mig welding torch?
A:Yes,you will afford the express charge or your account is OK.


Q3:Can I add my trademark on my products of panasonic mig welding torch?
A:Yes,we need your certificate of authorization.


Q4:Welding torch payment terms of panasonic mig welding torch:
A: T/T,L/C,Western union all support


Q5:Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc panasonic mig welding torch








































































































































































Contact Person: Mighty

Phone:86-739-2208862

Fax:86-739-2209882

Address: YINSHAN VILLAGE,LIANGSHI TOWN,SHAODONG CITY,Shaoyang,Hunan
