MB 36KD Automatic MIG Welding Torch 45 Bent

Payment Type: L/C,T/T,Western Union
Min. Order: 100 Set/Sets
Delivery Time: 20 Days

Basic Info

Model No.: MB36

Certification: CE

Maximum Welding Thickness: Other

Application: Hand

Combustible Gas: Other

Flame Number: Multiple Flame

Size: Portable

Type: Other

Brand: HAILI

Welding Type: CO2 Welding Torch

Duty Cycle: 60%

Cable Length: 3m,4m,5m

Cooling Type: Air Cooled

Packing: Colorful Box

Delivery Time: 15 Days

MOQ: 100Sets

Wire Size: 0.8-1.2mm

Item Name: MB 36KD Automatic MIG Welding Torch

Additional Info

Packaging: each set packed in colorful box, each 5 sets packed in one master carton box

Productivity: 150,000

Brand: HAILI

Transportation: Ocean,Land,Air,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090


Product Description

1, Product Datas:

HAILI 36KD air cooled mig mag welding torch

1. CO2 air protective welding torch.
2. Rating: 300A CO2 270A Mixed Gases
3. Duty Cycle: 60%
4. Wire Size: 0.8-1.2mm
5. handle colour could be available
6. 3M, 4M ,5M is available.

7.All the torch accessories available

8, CE certificate

9, OEM, ODM service available

10, Special packaging available

2, Products Details:

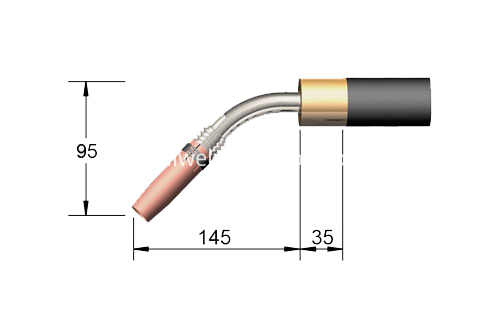

36KD Automatic 45 Bent MIG Welding Torch

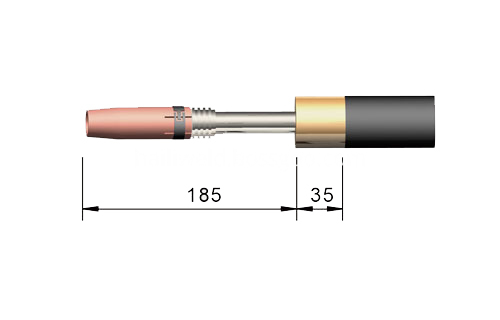

36KD Automatic Straight MIG Welding Torch

Mig Torch Mb36

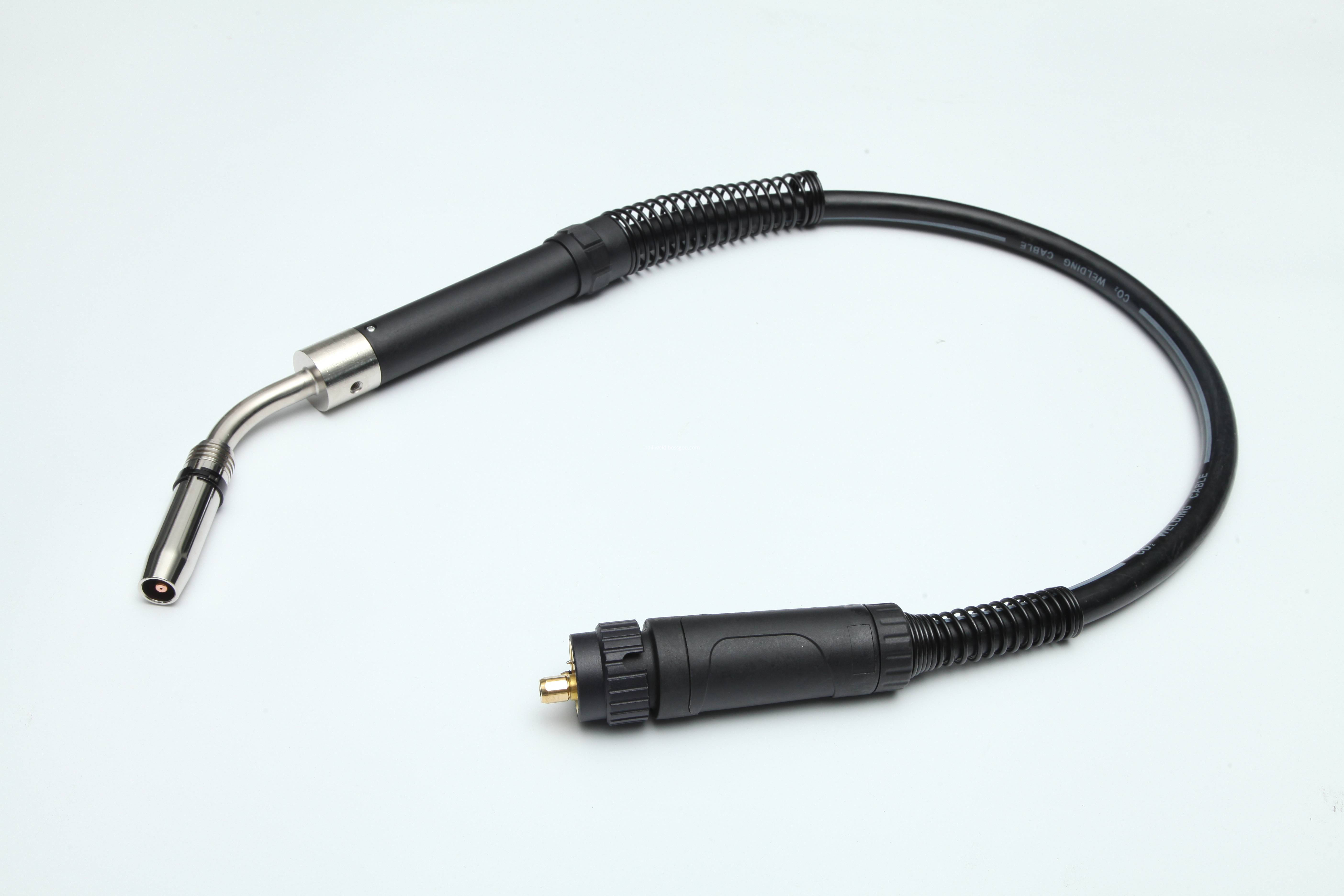

36kd Air Cooled Mig Welding Torch

No. Description OEM p/n

36KD Complete Torch 3M

36KD Complete Torch 4M

36KD Complete  Torch 5M
1 Cylindrical Nozzle Φ 19mm  145.0045
2 Conical Nozzle Φ16mm 145.0078
3 Tapered Nozzle Φ12mm  145.0126
4 M6x28x0.8 Contact Tip,E-Cu  140.0051

M6x28x0.9 Contact Tip,E-Cu  140.0169

M6x28x1.0 Contact Tip,E-Cu  140.0242

M6x28x1.2 Contact Tip,E-Cu  140.0379

M6x28x0.8 Contact Tip,CuCrZr  140.0054

M6x28x1.0 Contact Tip,CuCrZr  140.0245

M6x28x1.2 Contact Tip,CuCrZr  140.0382

M8x30x0.8 Contact Tip,E-Cu 140.0114

M8x30x1.0 Contact Tip,E-Cu  140.0313

M8x30x1.2 Contact Tip,E-Cu  140.0442

M8x30x0.8 Contact Tip,CuCrZr  140.0117

M8x30x1.0 Contact Tip,CuCrZr  140.0316

M8x30x1.2 Contact Tip,CuCrZr 140.0445
5 Contact Tip Holder M6x25

Contact Tip Holder M6x28 142.0005

Contact Tip Holder M6x32 142.0011

Contact Tip Holder M8x25

Contact Tip Holder M8x28 142.002

Contact Tip Holder M8x34 142.0024
6 Gas Diffuser  DMC 14.0231

Gas Diffuser  Ceramic 14.0023
7 Swan Neck 998.0031
8 Plastic Nut 400.0044
9a Handle BWM-III   (BLUE-GRAY)
9b Handle BWM-III   (RED-GRAY)
10 Switch 185.0031
11 Ball Joint Cable Support Spring
12 Cable Assembly(37mm2 or 50mm2),3M

Cable Assembly(37mm2 or 50mm2),5M
13 Cable Support Spring
14 Cable Support Machine Side  501.2248
15 Central Connector KZ-2 501.0003
16 Adapter Nut  500.0213
17 Blue Liner,For wire Φ1.0-1.2,3.5M

Blue Liner,For wire Φ1.0-1.2,5.5M
18 Nut M10x1 501.0082

3,Product and Packaging details:

36KD Automatic Welding Torch

36KD Automatic Welding Gun

welding torch panasonic 200a

4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :

Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode

5, Company introdcution:

Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.

The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.

With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.

We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.

6, FAQ

Q1:Can I get a free samples to check the quality of binzel mig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.

Q2:Will I afford the carrier charge of binzel mig welding torch?
A:Yes,you will afford the express charge or your account is OK.

Q3:Can I add my trademark on my products of binzel mig welding torch?
A:Yes,we need your certificate of authorization.

Q4:Welding torch payment terms of binzel mig welding torch:
A: T/T,L/C,Western union all support

Q5:Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc binzel mig welding torch
