MB 24KD MIG Contact Tip Holder M6X26

Payment Type: L/C,T/T,Western Union
Min. Order: 1000 Piece/Pieces
Delivery Time: 20 Days

Basic Info

Model No.: MB24

Certification: CE

Maximum Welding Thickness: Other

Application: Hand

Combustible Gas: Other

Flame Number: Multiple Flame

Size: Portable

Type: Other

Brand: HAILI

Torch: For MB 24KD

Specification: M6X26MM

Material: Brass

Packing: Colorful Plastic Bag

Delivery Time: 15 Days

MOQ: 1000 PCS

Main Spares: Nozzle,Gas Diffuser,Swan Neck,Tip Holder

Item Name: MB 24KD MIG Contact Tip Holder M6X26

Additional Info

Packaging: each 10 pcs packed in one plastic bag

Productivity: 150,000

Brand: HAILI

Transportation: Ocean,Land,by courier

Place of Origin: China

Supply Ability: Excellent

Certificate: CE

HS Code: 8515900090


Product Description

1, Product Datas:

HAILI 24KD air cooled mig mag welding torch

1. CO2 air protective welding torch.
2. Rating: 250A CO2 220A Mixed Gases
3. Duty Cycle: 60%
4. Wire Size: 0.8-1.2mm
5. handle colour could be available
6. 3M, 4M ,5M is available.

7.All the torch accessories available

8, CE certificate

9, OEM, ODM service available

10, Special packaging available

MB 24KD MIG Contact Tip Holder M6X26

2, Products Details:

Mig Torch Mb2424kd Air Cooled Mig Welding Torch

No. Description Order OEM p/n

24KD Complete Torch 3M 31013071

24KD Complete Torch 4M

24KD Complete Torch 5M 31013072
1 Cylindrical Nozzle Φ17mm  3106160 145.0047
2 Conical Nozzle Φ12.5mm  3106170 145.008
3 Tapered Nozzle Φ10mm  3106172 145.0128
4 M6x28x0.8 Contact Tip,E-Cu 3102090 140.0051

M6x28x0.9 Contact Tip,E-Cu  3102100 140.0169

M6x28x1.0 Contact Tip,E-Cu  3102110 140.0242

M6x28x1.2 Contact Tip,E-Cu  3102120 140.0379

M6x28x0.8 Contact Tip,CuCrZr  3103060 140.0054

M6x28x1.0 Contact Tip,CuCrZr  3103080 140.0245

M6x28x1.2 Contact Tip,CuCrZr 3103090 140.0382
5 Contact Tip Holder  3105100 142.0003
6 Gas Diffuser  3108010 12.0183
7 Swan Neck  3107102 12.0001
8 Plastic Nut 3107103 400.0044
9 Ball Joint Cable Support Spring  3407171
10a Handle BWM-III BLUE-GRAY 34074321
10b Handle BWM-III RED-GRAY 34074322
11 Switch  3112080 185.0031
12 Cable Assembly(25mm2), 3M 31012709

Cable Assembly(25mm2), 5M  310127011
13 Cable Support Spring  3407172
14 Cable Support Machine Side  3407151 501.2248
15 Central Connector KZ-2 3112193 501.0003
16 Adapter Nut  3112192 500.0213
17 Green Liner,For wire Φ0.8-1.0,3.5M  31105641

Green Liner,For wire Φ0.8-1.0,5.5M 31105643
18 Nut M10x1 3112030 501.0082
18 Nut M10x1 501.0082
18 Cable Support Machine Side

19 Red Liner,For wire Φ1.2-1.6,3.5M

Red Liner,For wire Φ1.2-1.6,5.5M

3,Product and Packaging details:

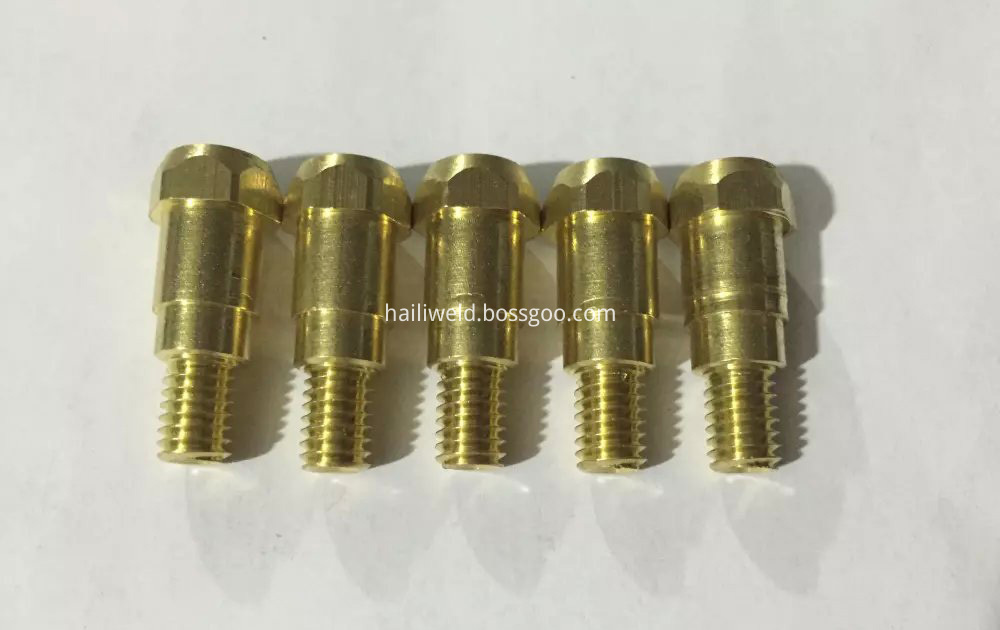

Mb24kd Contact Tip Holder M6x26mm

24kd Contact Tip Holder

4, Shaodong Lida Tools Co.,Ltd can produces :
1.MIG/MAG,CO2 welding torch and accessories :

Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard 300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco5#,Fronius AW4000,AW5000,AL3000, AL4000,Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.
2.Tig welding torch and accessories : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) ,collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/medium/short cap etc.
3.Air plasma cutting torch and accessories :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp,welding cable
5.welding helmet,electorde holder
6.tungsten electrode

5, Company introdcution:

Shaodong Lida Tools Co.,Ltd is one of professional supplier of welding and cutting equipment and accessories in China since 2000.

The company specialize in manufacturing MIG,TIG,PLASMA, Welding torch and spare parts. The annual output of welding torch exceed 200,000 sets. We have obtained CE European safety certificate. Our main customers come from Southeast Asia, Middle&South&West Euro, Latin American market.

With international advanced technology, popular products design, integrating modern management, excellent quality, competitive price, and favorable sale and after-sales service. Our clients come from over 50 countries and regions around the world.

We expect you could become our new client as soon as possible. You will surely be satisfied with us. If you are interested in any of our products, please feel free to contact us for more details.

6, FAQ

Q1:Can I get a free samples to check the quality of binzel mig welding torch ?
A:Sure,we can supply the free samples which price is low than US$5.

Q2:Will I afford the carrier charge of binzel mig welding torch?
A:Yes,you will afford the express charge or your account is OK.

Q3:Can I add my trademark on my products of binzel mig welding torch?
A:Yes,we need your certificate of authorization.

Q4:Welding torch payment terms of binzel mig welding torch:
A: T/T,L/C,Western union all support

Q5:Welding torch delivery time of:
A: sample order 2 working days,500pcs order 10 working days.
Q6:Min order quantities:
A: 1pc binzel mig welding torch
